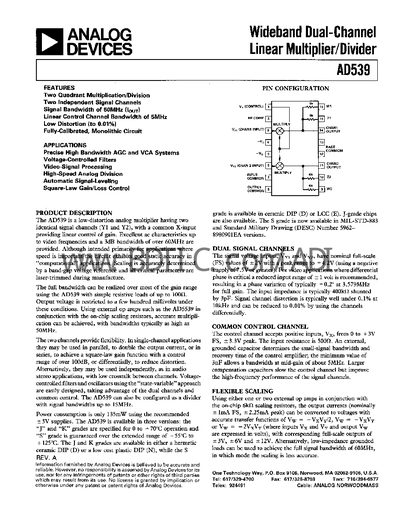

The AD539 provides two identical signal channels with a common X‑input for linear gain control. It offers a 60 MHz (3 dB) signal‑channel bandwidth, a 5 MHz linear‑control‑channel bandwidth, and low distortion (≤0.01 %). The device is available in J, K, and S grades, in plastic or ceramic DIP packages and a MIL‑STD‑883 version.
Typical applications include high‑bandwidth AGC/VCA systems, voltage‑controlled filters, video‑signal processing, and high‑speed analog division. The datasheet includes detailed specifications, pin configuration, ordering guide, recommended PCB layout, and transfer‑function equations for multiplier and divider configurations.
| Signal‑channel bandwidth (3 dB) | 60 MHz |
|---|---|
| Linear‑control‑channel bandwidth (3 dB) | 5 MHz |
| Power consumption | 135 mW |
| Supply voltage range | +4.5 V to +16.5 V |
| Input impedance (typical) | 400 kΩ |
| Signal‑channel distortion (typical) | < 0.1 % at 10 kHz |
| Nominal output current (full‑scale) | +1 mA FS, +2.25 mA peak |
The AD539 provides a 60 MHz (3 dB) signal‑channel bandwidth.
The device operates from +4.5 V up to +16.5 V.
Typical power consumption is 135 mW.
