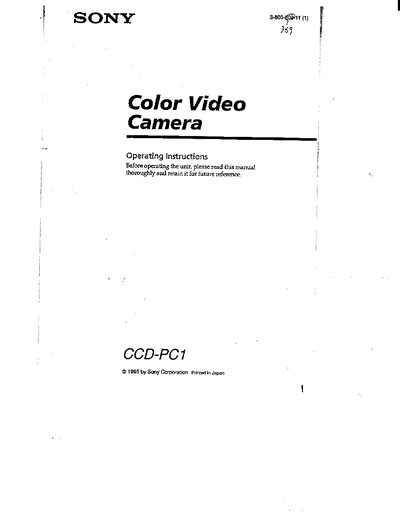

This manual provides the operating instructions for the Sony CCD‑PC1 camcorder, including safety precautions, how to connect the camera to a TV, computer or VCR, and detailed usage steps such as adjusting focus, iris, and rotating the camera head. It also lists the supplied accessories and explains proper handling of the flexible arm and microphone.
The document includes a specifications table, maintenance tips, and a troubleshooting guide that helps resolve common issues like missing picture or poor sound quality. FCC compliance information and copyright notices are also included.
| Video signal | NTSC color, EIA standards |
|---|---|
| Image device | 1/4 inch color CCD (270,000 pixels) |
| Lens focal length | 3.9 mm, f/1.8 |
| Minimum illumination | 9 lux |
| Illumination range | 9 to 10,000 lux |
| Power requirements | DC 6.0 V |
| Power consumption | 18 W |
| S‑Video output | 4‑pin mini DIN |
| Audio output | 327 mV monaural, impedance <2.2 kΩ |
| Operating temperature | 41 °F to 104 °F (5 °C to 40 °C) |
| Mass | ≈ 7 oz (650 g) |
Remove dust with a blower brush and wipe fingerprints with a soft cloth; do not use any solvents.
The camcorder requires a DC 6.0 V power supply and consumes about 18 W.
