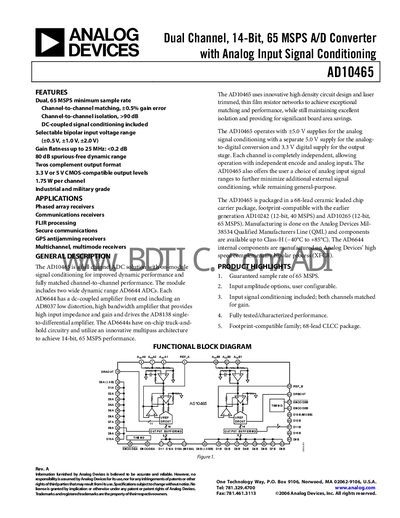

The AD10465 is a dual, 14-bit, 65 MSPS A/D converter with DC-coupled signal conditioning
The AD10465 from Analog Devices is a dual‑channel, 14‑bit analog‑to‑digital converter capable of up to 65 MSPS per channel. It includes on‑chip signal conditioning, selectable bipolar input ranges, and CMOS‑compatible 3.3 V or 5 V digital outputs. The device is supplied in a 68‑lead ceramic leaded chip carrier and is qualified for industrial and military use.
Key features include channel‑to‑channel matching of ±0.5 % gain error, >90 dB isolation, 80 dB spurious‑free dynamic range, and a gain flatness of <0.2 dB up to 25 MHz. Detailed specifications, pin configurations, test circuits, and mechanical drawings are provided for designers.
| Resolution | 14 bits |
|---|---|
| Maximum conversion rate | 65 MSPS |
| Minimum conversion rate | 20 MSPS |
| Input voltage range (selectable) | ±0.5 V, ±1.0 V, ±2.0 V |
| Supply voltage (AVcc) | 4.85 V – 5.25 V (typical 5.0 V) |
| Power dissipation (total) | 3.5 W – 3.9 W |
Each channel can sample at up to 65 MSPS.
The device offers selectable bipolar ranges of ±0.5 V, ±1.0 V, and ±2.0 V.
Typical total power dissipation is between 3.5 W and 3.9 W.
