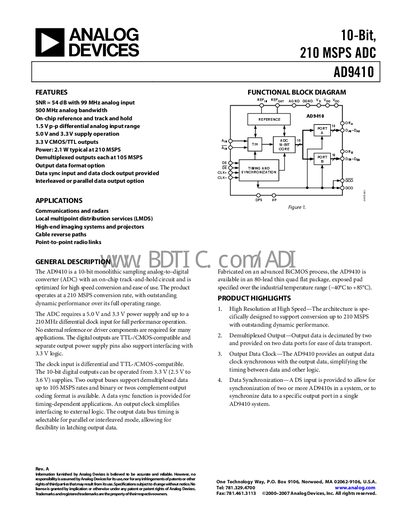

AD9410 is a 10-bit, 210 MSPS ADC with 500 MHz analog bandwidth and 3.3 V CMOS/TTL outputs.
The AD9410 is a 10‑bit monolithic sampling analog‑to‑digital converter optimized for high‑speed conversion up to 210 MSPS. It features an on‑chip track‑and‑hold circuit, differential inputs, and dual supply operation (3.3 V analog, 5 V digital). The device provides demultiplexed outputs, data‑sync input, and selectable parallel or interleaved data formats.
The ADC is supplied in an 80‑lead thin quad flat package with an exposed pad, suitable for industrial temperature ranges (‑40 °C to +85 °C). Detailed specifications include resolution, SNR, power dissipation, input voltage range, and absolute maximum ratings.
| Resolution | 10 Bits |
|---|---|
| Signal‑to‑Noise Ratio (SNR) | 54 dB |
| Maximum Conversion Rate | 210 MSPS |
| Power Dissipation (typical) | 2.1 W |
| Analog Input Voltage Range | +768 mV p‑p |
| Supply Voltages | 3.3 V analog, 5.0 V digital |
The AD9410 uses a 3.3 V analog supply (Von, Vo) and a 5.0 V digital supply (Vcc).
The device can convert at up to 210 MSPS.
The AD9410 achieves a signal‑to‑noise ratio of 54 dB with a 99 MHz analog input.
Typical power dissipation is 2.1 W at 210 MSPS.
