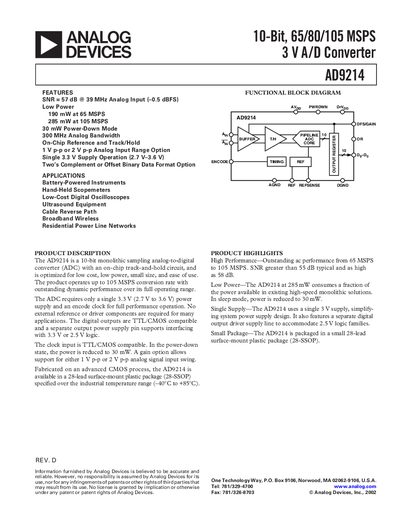

This data sheet provides detailed information on the AD9214 10-bit, 65/80/105 MSPS 3 V A/D Converter. It includes functional block diagram, pin assignments, specifications, performance data sheets, application examples and more.
The AD9214 is a 10‑bit monolithic sampling ADC optimized for low cost, low power, and small size. It operates from a single 3.3 V supply (2.7 V‑3.6 V) and offers selectable 1 V or 2 V peak‑to‑peak analog input ranges. The device supports conversion rates from 65 MSPS up to 105 MSPS with typical SNR of 57 dB at 39 MHz.
The converter is supplied in a 28‑lead shrink‑small‑outline package (28‑SSOP) rated for an industrial temperature range of –40 °C to +85 °C. Detailed specifications cover DC, digital, AC, and switching parameters, along with pin functions, absolute maximum ratings, and ordering information.
| Analog Input Range | 1 V p‑p or 2 V p‑p |
|---|---|
| Package | 28‑lead SSOP |
| Operating Temperature Range | ‑40 °C to +85 °C |
| Signal‑to‑Noise Ratio | 57 dB @ 39 MHz |
It is offered in a 28‑lead shrink‑small‑outline (SSOP) package.
