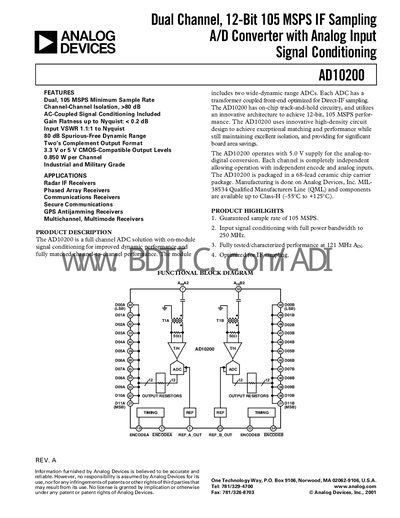

AD10200 is a dual-channel, 12-bit, 105 MSPS IF sampling A/D converter with analog input signal conditioning.
The AD10200 is a full‑channel ADC solution that includes on‑module signal conditioning and transformer‑coupled front‑ends for direct‑IF sampling. It delivers 12‑bit resolution at a guaranteed 105 MSPS sample rate, with channel‑to‑channel isolation greater than 80 dB and an input VSWR of 1.1:1 to 200.
Targeted at radar IF receivers, phased‑array and secure communications, the device operates from –55 °C to +125 °C, supports 3.3 V or 5 V CMOS‑compatible output levels, and is packaged in a 68‑lead ceramic chip carrier for industrial and military applications.
| Resolution | 12 Bits |
|---|---|
| Input VSWR | 1.1:1 to 200 |
| Operating Temperature | -55 °C to +125 °C |
| Output Voltage Levels | 3.3 V or 5 V CMOS‑compatible |
| Input Impedance | 50 Ω |
| Output Rise Time | 12 ns |
The AD10200 guarantees a minimum sample rate of 105 MSPS.
It operates from –55 °C up to +125 °C.
The device uses a 5.0 V analog supply and provides 3.3 V or 5 V CMOS‑compatible output levels.
