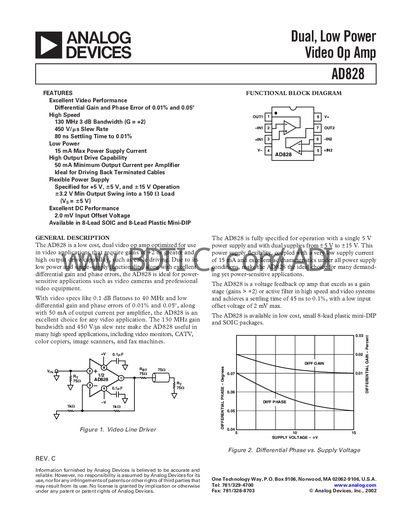

The AD828 is a low cost, dual video op amp optimized for use in video applications that require gains of +2 or greater and high output drive capability, such as cable driving.
The AD828 is a dual, low‑power video operational amplifier designed for power‑sensitive video equipment such as cameras, monitors, and video transmitters. It offers excellent video performance with a differential gain error of 0.01 % and phase error of 0.05°, plus a high output drive capability of 50 mA per amplifier.
Typical applications include video line drivers, full‑duplex transmission, and low‑distortion amplification. The device operates from a single 5 V supply or dual supplies up to +15 V, providing flexibility for a wide range of video and high‑speed signal processing circuits.
| 3 dB Bandwidth (G = +2) | 130 MHz |
|---|---|
| Slew Rate | 450 V/µs |
| Settling Time to 0.01 % | 80 ns |
| Input Offset Voltage | 2 mV |
| Minimum Output Current per Amplifier | 50 mA |
| Supply Voltage Range | +5 V to +15 V (single or dual) |
Each amplifier can source at least 50 mA of output current.
The device is specified for single‑supply +5 V operation or dual supplies ranging from +5 V to +15 V.
The maximum power‑supply current is 15 mA.
