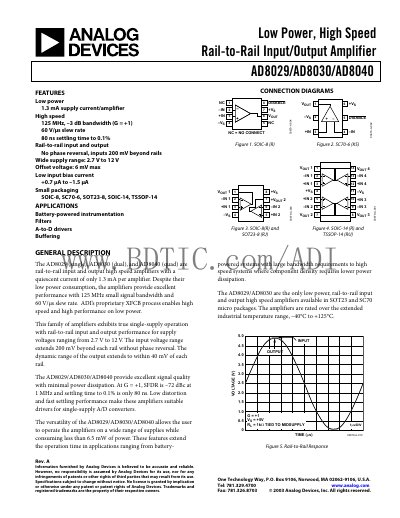

The AD8029, AD8030, and AD8040 are low‑power, high‑speed rail‑to‑rail input/output amplifiers designed for battery‑powered instrumentation, filters, A‑to‑D drivers, and buffering. They operate from a wide supply range of 2.7 V to 12 V and provide rail‑to‑rail performance with no phase reversal up to 200 mV beyond the rails.
Typical performance includes a 125 MHz -3 dB bandwidth, 62 V/µs slew rate, and 80 ns settling time to 0.1 % at a gain of +1. The devices consume only 1.3 mA quiescent current per amplifier and are rated for an industrial temperature range of –40 °C to +125 °C.
| Quiescent Current per Amplifier (typ) | 1.5 mA |
|---|---|
| Operating Supply Range | 2.7 V to 12 V |
| Temperature Range | -40 °C to +125 °C |
They operate from 2.7 V up to 12 V.
The typical quiescent current is 1.5 mA per amplifier.
The devices can sink/source up to 170 mA / 160 mA.
They are rated for –40 °C to +125 °C.
