AD5750 is a single-channel, low-cost, high-precision voltage/current output driver with programmable output range through hardware or software. Software output range can be set through SPI/MICROWIRE™ compatible serial interface. AD5750 can meet the requirements of PLC and industrial process control applications.

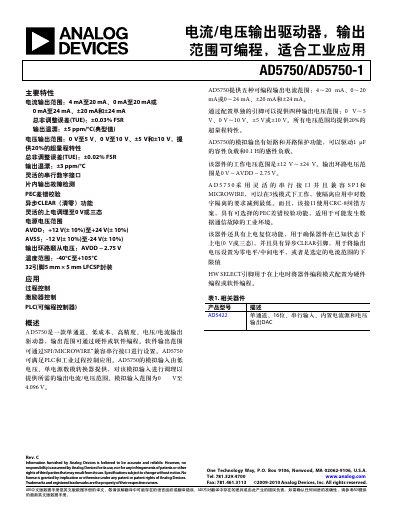

The AD5750/AD5750-1 is a low‑cost, high‑precision, single‑channel DAC that can output either voltage or current. Output ranges are programmable via hardware or software and can be set through an SPI/MICROWIRE‑compatible serial interface.
The device operates from ±12 V to ±24 V supplies, supports a temperature range of –40 °C to +105 °C, and includes features such as short‑circuit protection, asynchronous clear, and optional PEC error checking for reliable industrial use.
| Output current range | 4‑20 mA, 0‑20 mA, 0‑24 mA, ±20 mA, ±24 mA |
|---|---|
| Output voltage range | 0‑5 V, 0‑10 V, ±5 V, ±10 V (all with 20 % over‑range) |
| Supply voltage (AVDD/AVSS) | ±12 V to ±24 V (±10 %) |
| Resolution | 16 bit |
| Operating temperature range | –40 °C to +105 °C |
It supports 4‑20 mA, 0‑20 mA, 0‑24 mA, ±20 mA and ±24 mA output current ranges.
The device operates from ±12 V to ±24 V (±10 % tolerance) on the AVDD/AVSS pins.
The AD5750 is rated for –40 °C to +105 °C industrial temperature range.
