The ADA4830-1 is a monolithic high speed difference amplifier that features high input common-mode range, high input offset voltage range, high gain accuracy, high linearity and high slew rate.
The ADA4830-1 is a monolithic high‑speed difference amplifier with integrated short‑to‑battery protection up to 18 V, a wide input common‑mode range, and low‑noise video performance. It is intended for automotive vision and infotainment systems, surveillance, and other high‑speed video applications.

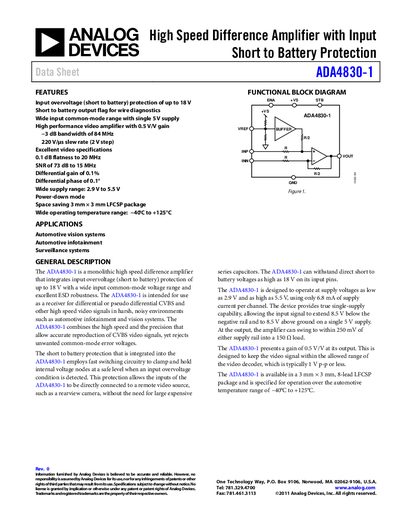

The document provides full electrical specifications, pin‑out descriptions, typical performance curves, thermal data, and ordering information for the 3 mm × 3 mm 8‑lead LFCSP package. It also includes application notes, ESD cautions, and guidelines for PCB layout and thermal management.
| Operating Temperature Range | -40 °C to +125 °C |
|---|---|
| Supply Voltage Range | 2.9 V to 5.5 V |
It includes short‑to‑battery protection that clamps input pins when an overvoltage up to 18 V is detected.
The device provides a gain of 0.5 V/V at its output.
