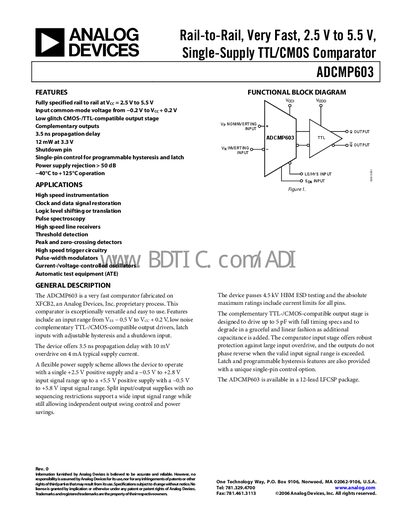

The ADCMP603 is a high-speed comparator fabricated on XFCB2, an Analog Devices, Inc. proprietary process. This comparator is exceptionally versatile and easy to use.
The ADCMP603 comparator from Analog Devices operates from a single 2.5 V to 5.5 V supply and offers rail‑to‑rail input range, low‑glitch TTL/CMOS‑compatible output, and programmable hysteresis via a single‑pin control. It is suited for high‑speed instrumentation, logic level shifting, pulse‑width modulation, and other fast signal‑processing applications.
The device features a 12‑lead LFCSP package, can handle up to 5 pF load capacitance, and includes shutdown and latch functions. Detailed electrical characteristics, timing diagrams, pin descriptions, and typical performance curves are provided for designers.
| Propagation Delay | 3.5 ns |
|---|---|
| Supply Voltage Range (Input) | 2.5 V to 5.5 V |
| Operating Temperature Range | -40 °C to +125 °C |
| Package | 12‑lead LFCSP |
| Power Dissipation (VEE = 2.5 V) | 11 mW |
| Output High‑Level Current | 8 mA |
| Common‑Mode Input Range | -0.2 V to VCC+0.2 V |
| Hysteresis (typical) | 120 mV |
The comparator has a typical propagation delay of 3.5 ns.
It operates from a single supply of 2.5 V to 5.5 V.
The device is offered in a 12‑lead LFCSP package.
It is rated for operation from –40 °C up to +125 °C.
