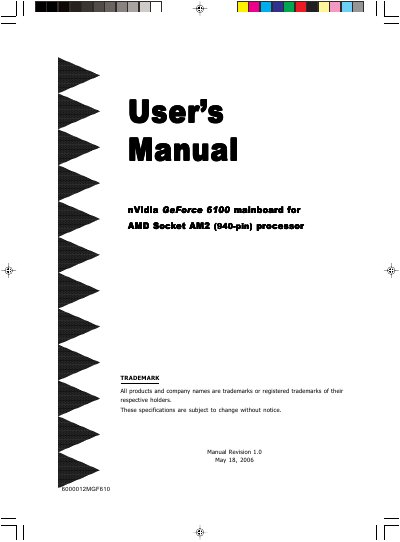

This is the user manual of nVidia GeForce 6100 motherboard.
This manual covers everything needed to set up the Nvidia GeForce 6100 motherboard, including package contents, mainboard features, and detailed system block diagrams. It guides users through CPU installation, jumper settings, memory configuration, and connector usage.
Additional sections describe BIOS configuration, driver and utility installation, and safe BIOS flashing procedures. Optional features such as NVIDIA Firewall, ActiveArmor, and RAID support are also explained, along with hardware monitoring and power management utilities.
| CPU Socket | Socket AM2 (940‑pin) |
|---|---|
| Chipset | nVidia GeForce 6100 + nForce 410 or nForce 430 |
| Memory Slots | Four 240‑pin unbuffered non‑ECC DDRII SDRAM DIMM sockets |
| Maximum Memory | Up to 16 GB |
| PCI Slots | Two PCI connectors (PCI v2.3) |
| PCI‑E Slots | One PCI‑E x1 and one PCI‑E x16 (PCI‑Express 1.0a) |
| USB Ports | Eight USB2.0 connectors (4 rear, 4 extra) |
| Form Factor | 245 mm × 245 mm Micro ATX |
