Start here

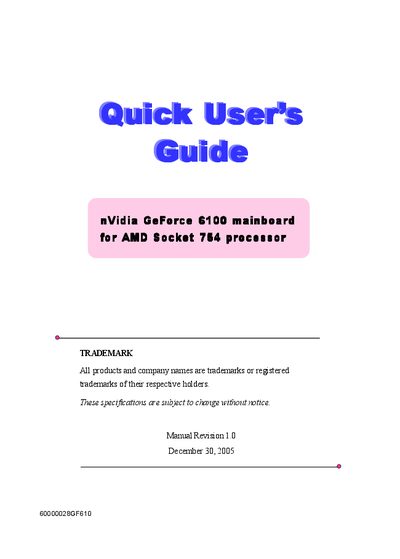

Nvidia GeForce 6100 Mainboard Quick Start Guide
This quick guide provides an overview of the Nvidia GeForce 6100 mainboard, including its supported processors, chipset features, memory options, expansion slots, and integrated peripherals. It also outlines handling precautions and safety warnings for assembling the board.
The document walks the user through CPU installation, DDR memory insertion, connecting peripherals, and BIOS flashing procedures, offering concise step‑by‑step instructions for building a system around this Micro‑ATX motherboard.
Nvidia GeForce 6100 specifications
| Processor Support | Socket‑754 AMD Sempron/Athlon‑64 up to 3700+ (1.6 GHz HT) |
|---|---|
| Chipset | Nvidia GeForce 6100 + nForce 410 |
| Graphics | GeForce6‑class engine, DirectX 9.0c, Shader Model 3.0, 300 MHz RAMDAC, up to 1920×1440@75 Hz |
| USB Ports | 8 × USB 2.0 (4 rear panel connectors) |
| IDE Interface | 2 × IDE (up to 4 devices), UDMA‑33/66/100/133 |
| SATA II | 2 × SATA II ports, 300 MB/s, RAID 0/1 |
| LAN | 10/100 Mbps Ethernet (Realtek RTL8201) |
| Audio | Realtek ALC‑655 2‑ or 6‑channel codec, AC’97 v2.3 |
| Form Factor | Micro‑ATX 245 mm × 225 mm |
All Nvidia GeForce 6100 documents by type
The shortest path to a working setup, usually only a few pages.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many USB ports are available on the motherboard?
There are eight USB 2.0 ports, with four located on the rear panel.
What type of memory does the GeForce 6100 mainboard support?
It supports up to 4 GB of DDR‑333/400 SDRAM using four 184‑pin DIMM sockets.
From: nVidia GeForce 6100 mainboard for AMD Socket 939 processor user manual
How many USB ports are available on the board?
The board provides eight USB2.0 connectors, four of which are on the rear panel.
From: nVidia GeForce 6100 mainboard for AMD Socket 939 processor user manual
