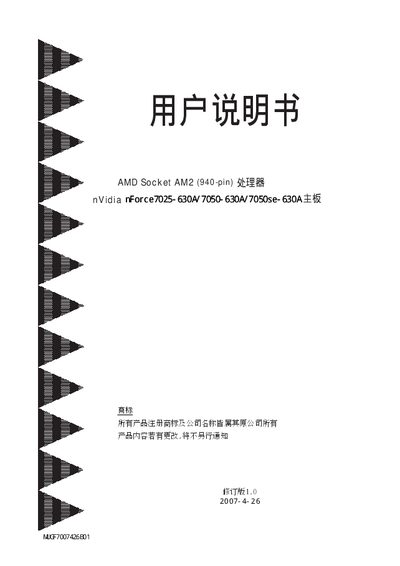

This document describes the features and characteristics of AMD Socket AM2 (940-pin) and nVidia nForce7025-630A/7050-630A/7050se-630A MUGF7007426B01, released on April 26, 2007.
This manual covers the full specifications of the Nvidia nForce7025-630A/7050-630A/7050se-630A motherboard, including supported CPUs, memory types, expansion slots, and integrated peripherals. It also describes the BIOS features, power management options, and system monitoring capabilities.
Installation procedures for the CPU, memory, and internal connectors are detailed, along with step‑by‑step guidance for configuring the BIOS, setting up RAID, and troubleshooting common error codes. The document includes safety warnings and handling instructions for the hardware.
| CPU Socket | Socket AM2 (940 pin) |
|---|---|
| Supported Processors | AMD Athlon‑X2 / Athlon‑64 / Sempron |
| Chipset | Nvidia MCP68 (nForce 7025 / 630W / 7050‑630 / 7050se‑630A) |
| Memory Capacity | Maximum 16 GB |
| USB Ports | 10 USB 2.0 ports (4 on front panel) |
Press Enter on the exit option and select “Quit without saving (Y/N)”.
It supports DDR2 SDRAM DIMM modules at 1.8 V, 533/667/800 speeds, dual‑channel, up to 16 GB.
The board provides ten USB 2.0 ports, with four located on the front panel.
