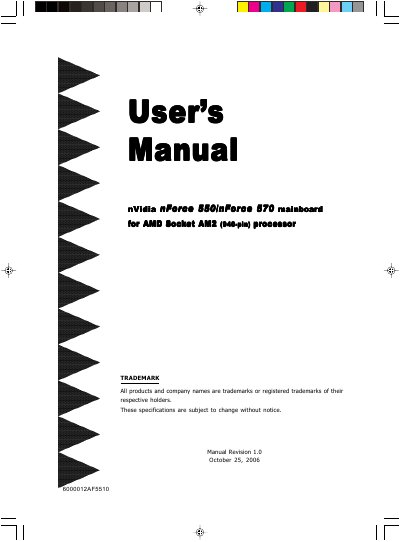

nVidia nForce 550inForce 570 motherboard user manual

nVidia nForce 550/nForce 570 mainboard user's manual

Brand: Nvidia
Category: Motherboard
Document type: User Manual
Language: English
Pages: 28
File format: PDF
File size: 2.7 MB
Published: 23 March, 2012
Updated: 30 September, 2023
Models: nForce 550, nForce 570
MD5 checksum: 73E7C0DE28D8CA017647A6305CD497D4
PDF: nVidia nForce 550inForce 570 motherboard user manual PDF

About this manual

This manual covers everything needed to install and configure the Nvidia nForce 550 or nForce 570 motherboard. It includes package contents, mainboard features, specifications, system block diagram, installation steps, BIOS setup, driver and utility information, and troubleshooting guidance.

Additional sections describe special utilities such as Ghost BIOS recovery, Thunder Probe diagnostics, and hot‑key functions for BIOS updates and over‑clocking. The appendix provides a full list of POST codes and other low‑level troubleshooting data.

What's inside

Introduction
Package Contents
Mainboard Features
Mainboard Specification
System Block Diagram
Installation
BIOS Setup
Driver & Utility
Ghost BIOS
Appendix

Specifications

Supported CPUs	Socket‑AM2 (940‑pin) AMD Athlon‑X2, Athlon‑64, Sempron
Chipset	nVidia nForce 550 / nForce 570
Audio	6‑channel Realtek ALC8xx HD audio codec

Frequently asked questions

Which processors are supported by the nForce 550/570 board?

The board supports Socket‑AM2 AMD Athlon‑X2, Athlon‑64 and Sempron processors.
