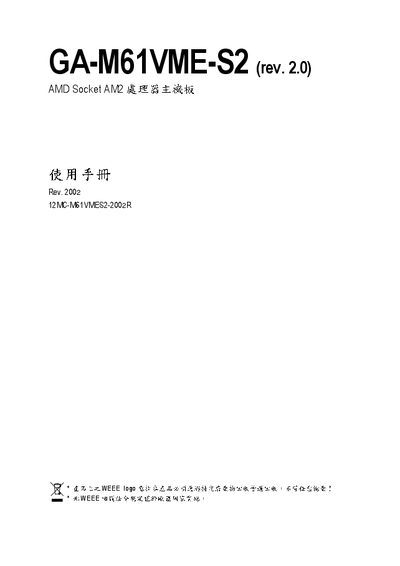

GA-M61VME-S2(rev. 2.0) is a AMD Socket AM2 computer motherboard that supports nVIDIA® GeForce 6100/6150 integrated graphics.
This manual covers everything needed to install and operate the GA-M61VME-S2 motherboard. It includes sections on checking accessories, hardware installation, CPU and heatsink mounting, memory and expansion card installation, and detailed BIOS setup options. Product specifications such as supported memory types, bus speeds, and connector layouts are listed.
Safety and regulatory information are also provided, including FCC, CE, and various EN compliance statements, as well as RoHS hazardous substance declarations. Contact information for Gigabyte’s global support network is included at the end of the document. This manual is written in Chinese.
| CPU Socket | AMD Socket AM2 |
|---|---|
| Supported Memory | DDRII 800/667 MHz DIMM (Dual Channel) |
| CPU Clock Adjustment | ±200 MHz |
| PCI Express Slots | PCI Express x1 |
| SATA Interface | SATA 3 Gb/s (100 MHz) |
| System Bus | Hyper Transport Bus |
It uses an AMD Socket AM2 processor socket.
It supports DDRII DIMM modules at 800 MHz or 667 MHz in dual‑channel configuration.
