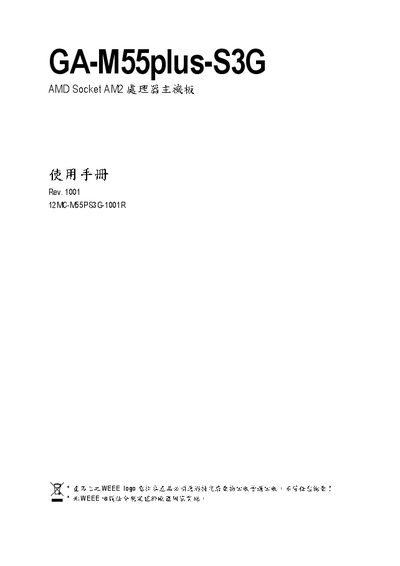

AMD Socket AM2 GA-M55plus-S3G CPU system board Manual

This document is the user manual of GA-M55plus-S3G motherboard. It introduces the features and usage of the motherboard.

Brand: AMD
Category: Other device
Document type: User Manual
Language: Chinese
Pages: 88
File format: PDF
File size: 8.5 MB
Published: 22 March, 2012
Updated: 01 October, 2023
Model: Socket AM2
MD5 checksum: AC51E32BD46F9D45A054CB8716A12F99
PDF: AMD Socket AM2 GA-M55plus-S3G CPU system board Manual PDF

About this manual

This manual covers everything needed to set up the GA-M55plus-S3G motherboard, including package contents, CPU and cooler installation, memory and expansion slot configuration, and BIOS settings. Detailed diagrams illustrate the layout of connectors, slots, and integrated components.

Additional sections describe driver installation, unique Gigabyte features such as EasyTune and Xpress Recovery, and a comprehensive troubleshooting guide to help resolve common issues. This manual is written in Chinese.

What's inside

Package Contents
CPU and Cooler Installation
Memory and Expansion Slots
BIOS Configuration
Driver Installation
Unique Features
Troubleshooting

Specifications

CPU Socket	AM2
PCI Express Slots	x16
Memory Type	DDRII 800/667 1533/400MHz DIMM (Dual Channel)
SATA Ports	4 × 3Gbps
Integrated Graphics Interface	VGA Socket AM2

Frequently asked questions

What is the model number of this motherboard?

The model number is GA-M55plus-S3G.

Which CPU socket does the GA-M55plus-S3G support?

It supports an AM2 socket.

How many SATA ports are provided on the board?

The board provides four SATA 3 Gbps ports.

What type of memory does the motherboard use?

It uses DDRII DIMM modules at 800/667 MHz (dual‑channel).
