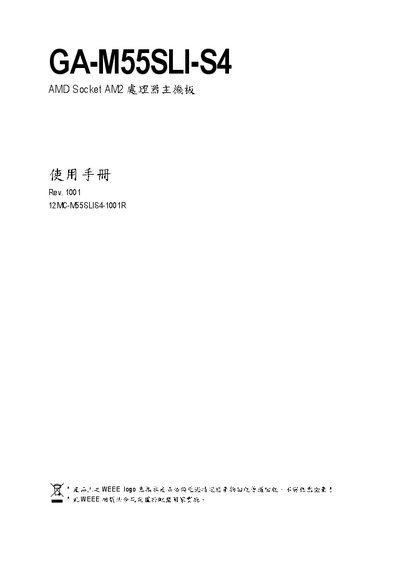

This document describes the features and characteristics of the GA-M55SLI-S4 motherboard produced by GIGA-BYTE TECHNOLOGY CO., LTD. It supports the Socket AM2 interface, uses AMD chipset, provides SLI (Scalable Link Interface) functionality, and has multiple expansion slots and interfaces, as well as BIOS settings, etc.
This manual provides detailed instructions for installing and configuring the Gigabyte GA‑M55SLI‑S4 motherboard. It includes safety and regulatory information, a checklist of package contents, and step‑by‑step guidance for mounting the CPU, attaching cooling solutions, and connecting peripherals.
The document also describes BIOS configuration options, explains the layout of expansion slots, memory channels, and storage interfaces, and offers troubleshooting tips and contact information for Gigabyte technical support worldwide. This manual is written in Chinese.
| CPU Socket | AMD Socket AM2 |
|---|---|
| Memory Type | DDR2 400/533/667 MHz DIMM |
| Memory Channels | Dual Channel |
| Expansion Slots | PCI Express x16, PCI Express x1 |
| Additional PCI Slots | PCI Express x1 Bus |
| SATA Ports | 4 × SATA 3 Gb/s |
| Chipset | IT8716 |
| Ethernet Controller | 88E1116 |
| FireWire (IEEE 1394) Ports | 2 × IEEE 1394 expansion slots |
It supports an AMD Socket AM2 processor.
The model number is GA‑M55SLI‑S4.
The board provides four SATA 3 Gb/s ports.
