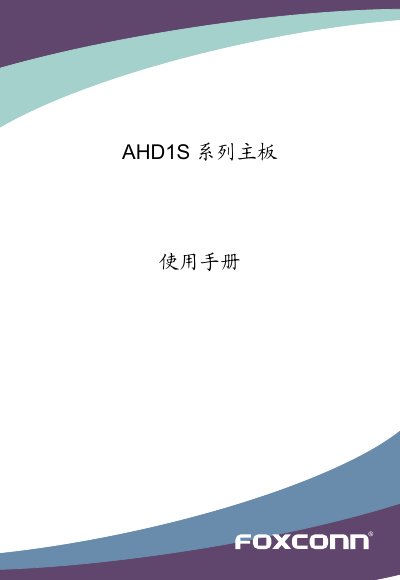

AHD1S series motherboard user manual, which details the characteristics and usage of the motherboard
This manual provides an overview of the Foxconn AHD1S/AHD1S-K motherboard, including product specifications, layout diagrams, backplane ports, and supported components. It also covers installation procedures for CPU, memory, expansion cards, and other peripherals.
The document includes detailed BIOS configuration options, power‑management settings, hardware monitoring features, and safety warnings. Compatibility lists and technical support contacts are provided for further assistance. This manual is written in Chinese.
| CPU Support | Zacate dual‑core APU, up to 18 W |
|---|---|
| Chipset | Hudson D1 |
| Memory Slots | 2 × 240‑pin DDR3, up to 8 GB, 1066 MHz dual‑channel |
| Expansion Slot | 1 × PCI‑Express x16 (supports x4 cards) |
| Graphics Interface | VGA AMD Radeon HD 6310, DirectX 11 support |
| Storage Interfaces | 2 × SATA 2.0, 300 MB/s, hot‑plug & NCQ |
| Network | Realtek RTL8111E Gigabit Ethernet |
| USB Ports | 10 × USB 2.0 (6 rear, 4 via 2 onboard headers) |
| Dimensions | Mini‑ITX, 6.7 in × 6.7 in (17 cm × 17 cm) |
When a high‑end graphics card is installed in the PCI‑Express x16 slot, a 24‑pin power connector is recommended for best performance.
The motherboard provides a total of 10 USB 2.0 ports: 6 rear ports and 4 ports via two onboard headers.
The board supports Microsoft Windows 7, Vista, and XP.
It supports up to 8 GB of DDR3 memory across two 240‑pin slots, running at 1066 MHz in dual‑channel mode.
