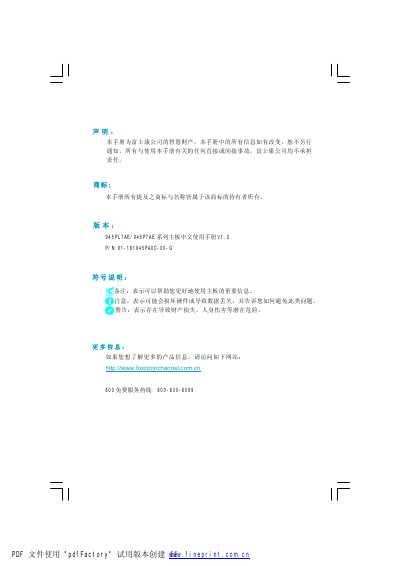

This document is the intellectual property of Foxconn company, providing a Chinese user manual for the 945PL7AE/945P7AE series motherboard, including important information and advice on avoiding problems.
This manual covers the basic features, board layout, rear panel connectors, CPU and memory specifications, power and expansion slots, as well as jumper settings for the Foxconn 945PL7AE/945P7AE series motherboard. Detailed BIOS configuration steps and driver installation procedures are included to help users set up the system correctly.
Safety notices, warranty statements, and compliance declarations are also provided, along with troubleshooting tips for common issues such as over‑clocking and hardware installation. This manual is written in Chinese.
| Form factor | ATX (295 mm × 218 mm) |
|---|---|
| CPU socket | LGA775, supports Intel Core2, Core, Pentium, Celeron |
| Memory slots | 2 DDR2 slots |
| Maximum memory | 4 GB total |
| USB ports | 8 USB 2.0 ports |
Press the Y key when prompted with “Save to CMOS and EXIT (Y/N)?” to save changes and exit the BIOS.
The CD contains Intel Chipset Driver, Realtek HDA Driver, Realtek LAN Driver, and Intel RAID Driver for the 945P7AE model.
Yes, after installing the Intel Chipset Driver you can click the “one‑click install” button to automatically install the remaining drivers.
