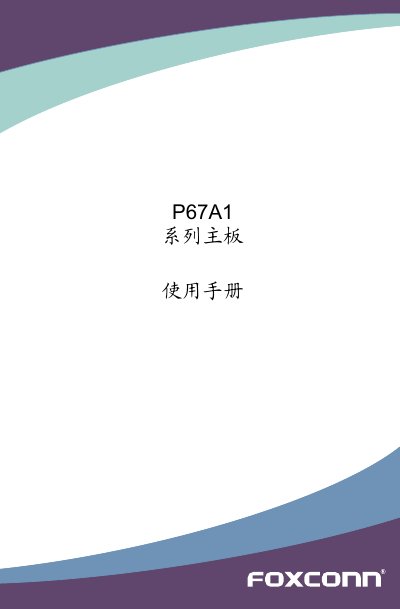

This document introduces the user manual of the P67A1 series motherboard, including information on electronic information product pollution control markings, names and content descriptions of toxic and harmful substances, and environmental usage limits.
This manual provides detailed information for the Foxconn P67A1 series motherboard. It includes product specifications, a layout diagram, back‑panel connector descriptions, and compliance statements. Safety notices such as ESD protection, power‑off requirements, and handling precautions are also covered.
The guide walks users through hardware installation (CPU, memory, expansion cards), BIOS configuration, software utilities (FOX LiveUpdate, FOX LOGO, FOX DMI), and system monitoring features. It also explains how to update the BIOS, use the built‑in utilities, and obtain technical support via Foxconn’s website and support lines. This manual is written in Chinese.
| CPU socket | LGA1155 (Intel CPUs, max 95W) |
|---|---|
| Chipset | Intel H61 |
| Memory slots | 2 x 240‑pin DDR3 DIMM, up to 8 GB, 1333/1066 MHz |
| PCI Express slots | 1 x PCIe x16, 3 x PCIe x1, 2 x PCI |
| SATA ports | 4 x SATA 2.0 (300 MB/s, hot‑plug, NCQ) |
| Network controller | Realtek RTL8111E Gigabit Ethernet |
| Audio codec | Realtek ALC662 (HD Audio, 5.1, S/PDIF) |
| USB ports | 10 x USB 2.0 (6 rear, 4 via internal headers) |
| Form factor | ATX, 24.4 cm × 19.8 cm |
An anti‑static wrist strap should be worn while touching electronic parts.
The board provides ten USB 2.0 ports – six on the rear panel and four via two internal headers.
