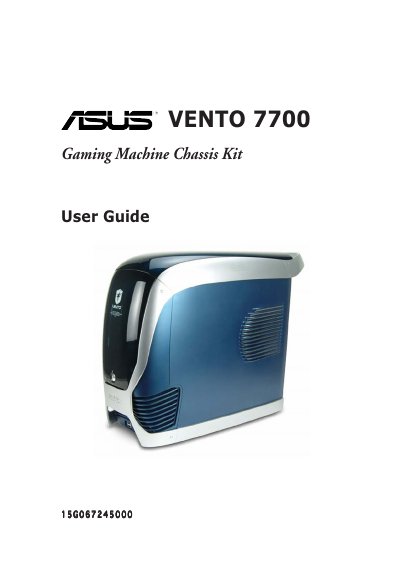

This document is the user guide for the Gaming Machine Chassis Kit from ASUSTeK COMPUTER INC., describing the features and characteristics of VENTO 7700 15G067245000 15G067245000 15G067245000 15G067245000 15G067245000.
The ASUS VENTO 7700 user guide provides an overview of the chassis kit, its features, and the components included in the package. It describes the front and rear panel layout, internal components, and the screwless design that simplifies device installation.
The guide includes detailed safety information, FCC and Canadian compliance statements, and step‑by‑step installation instructions for power supplies, motherboards, drives, and expansion cards, ending with instructions for replacing the side panel and contact information for ASUS support.
| Expansion slots | 7 |
|---|---|
| Front USB ports | Up to 4 USB 2.0 ports |
| IEEE 1394 port | 1 (front panel) |
| Audio ports | 2 (front panel) |
| Motherboard form factor | ATX 12" x 9.6" (30.5 cm x 24.4 cm) and mATX 9.6" x 9.6" (24.4 cm x 24.4 cm) |
| Dimensions | 270 mm (W) × 521 mm (H) × 630 mm (D) |
| System fans | 2 × 80 mm rear fans, 1 × 80 mm front fan |
The chassis includes seven expansion slots.
The chassis measures 270 mm wide, 521 mm high, and 630 mm deep.
The front panel provides up to four USB 2.0 ports.
Disconnect the power cable from the electrical outlet before moving the system.
