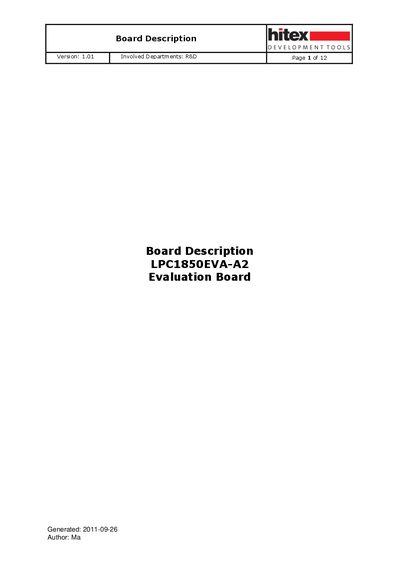

This document describes the jumpers and connectors on the NXP LPC1850EVA-A2 evaluation board developed by Hitex.
This manual provides a detailed description of the Hitex LPC1850EVA-A2 evaluation board, including its CPU (LPC1850 Cortex‑M3), memory options, and peripheral interfaces such as Ethernet, CAN, USB, and audio. It also lists the available connectors, jumpers, and default configurations for each function.
Power can be supplied via USB, a 5 V wall‑mount AC/DC adapter, or Power‑over‑Ethernet (PoE). Jumper JP33 selects the power source, while other jumpers configure Ethernet/SD‑card multiplexing, CAN/audio routing, and USB host/device/OTG functions. The document also explains how to connect a Hitex PowerScale probe for current measurement.
