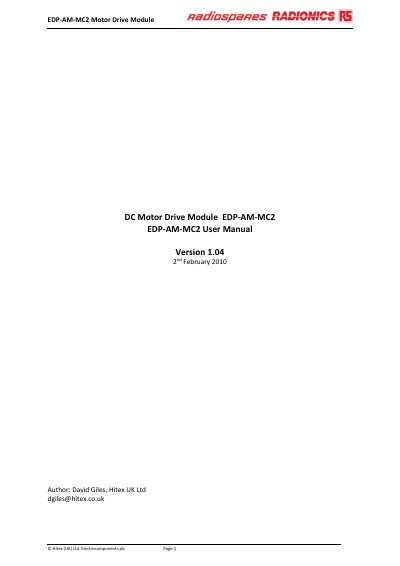

Hitex EDP-AM-MC2 Motor Drive Module User Manual

This is a motor drive module that can control 6-step hall sensored brushless DC motors and permanent magnet synchronous motors.

Brand: Hitex
Category: Motor
Document type: User Manual
Language: English
Pages: 60
File format: PDF
File size: 5.8 MB
Published: 15 October, 2023
Updated: 15 October, 2023
MD5 checksum: A1A41AF976A3F904D7ECD42A1244744A
PDF: Hitex EDP-AM-MC2 Motor Drive Module User Manual PDF

About this manual

The Hitex EDP-AM-MC2 is a 3.3V DC Motor Drive Module based on twin dsPIC33FJ128MC804 devices. It provides Brushless DC (BLDC) motor control using Hall sensors or back EMF sensing, as well as Permanent Magnet Synchronous Motor (PMSM) sine wave drive and position control via rotary encoder. The module can also be reconfigured for brushed DC motor speed control.

What's inside

Introduction
Command/Slave Module Configuration
Provided Software
Hardware Configuration
Software Installation
6 Step BLDC Operation
Sine Wave PMSM Operation
PMSM Position Control

Specifications

Microcontroller	twin dsPIC33FJ128MC804 devices
Operating Voltage	3.3V design
Motor Drive Rating	100W motor at 24V per phase
Total Power Output	200W per module

Frequently asked questions

Can the EDP-AM-MC2 be used as a Command Module?

Yes, if there is no other command module in the system, it can be configured as one by making the solder link for Vcc_CM.

Does the module support sensorless motors?

Yes, the motor drive can operate with sensorless motors that use back EMF sensing for commutation.
