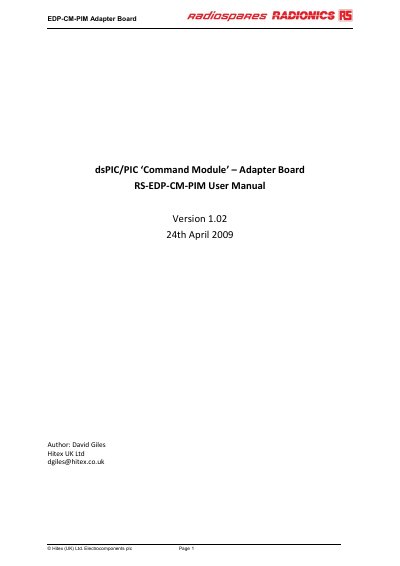

Hitex EDP-CM-PIM Adapter Board User Manual

This document is the user manual for EDP-CM-PIM Adapter Board, which introduces the use method and precautions of the product.

Brand: Hitex
Category: microcontrollers
Document type: User Manual
Language: English
Pages: 16
File format: PDF
File size: 688 KB
Published: 15 October, 2023
Updated: 15 October, 2023
MD5 checksum: 20F7AA1C1724109D106E6F7C4AF0337E
PDF: Hitex EDP-CM-PIM Adapter Board User Manual PDF

About this manual

The RS-EDP-CM-PIM Adapter Board is designed to connect Microchip PIM modules (such as dsPIC and PIC32 families) to the RS-EDP baseboard system. It functions as a 'Command Module' to dictate the system's operating voltage and remaps the PIM module's I/O to the backplane.

What's inside

Introduction
Jumper Options
Voltage Selection
Emulation & Programmer Jumpers
I2S Jumpers
CAN Bus Jumpers
USB Jumpers
Link Options
Software Support
Schematic Circuit Diagram

Specifications

Supported Microchip Families	8 bit PIC16Cxx, 16bit dsPIC, 32bit PIC32
Voltage Options	3.3V or 5.0V
Document Version	1.02

Frequently asked questions

How do I set the system voltage to 3.3V?

Set jumper JP101 to position 1-2.

How do I set the system voltage to 5.0V?

Set jumper JP101 to position 2-3.

What is the default setting for the voltage reference selector?

The default setting connects the PIM_Vcc to the AVdd signal.
