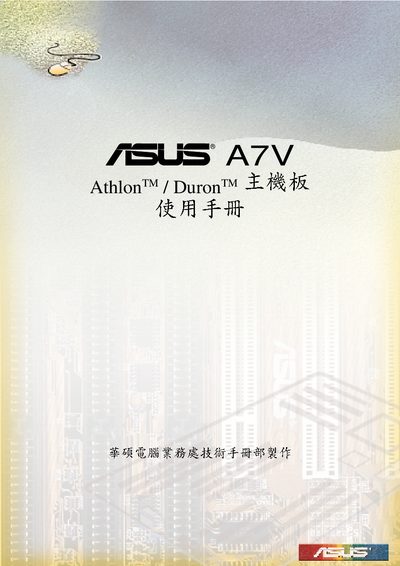

ASUS A7V Motherboard User Manual

This is a user manual for the A7V AthlonTM/DuronTM 2 motherboard

Brand: ASUS
Category: Other device
Document type: User Manual
Language: Chinese
Pages: 108
File format: PDF
File size: 6.6 MB
Published: 22 March, 2012
Updated: 30 September, 2023
Model: A7V
MD5 checksum: CC8E3139B69FAB06697EC6904D11BB20
PDF: ASUS A7V Motherboard User Manual PDF

About this manual

This manual covers the ASUS A7V motherboard, detailing its features, supported CPUs, memory limits, and expansion options. It includes step‑by‑step hardware installation, BIOS configuration, and software setup instructions.

The document also lists technical specifications such as supported processors, memory capacity, AGP/PCI interfaces, IDE connectors, and network wake‑on‑LAN capability, helping users configure and maintain the board effectively. This manual is written in Chinese.

What's inside

Introduction
Features
Hardware Installation
BIOS Settings
Software Installation
Software Usage
Appendix

Specifications

Supported CPUs	AMD Athlon and Duron processors
Maximum Memory	1.5 GB DDR SDRAM (PC133/PC100)
IDE Connectors	Four IDE ports (ATA100/66/33)
UltraDMA	UltraDMA/66
Network Wake‑on‑LAN	Integrated 10/100 Ethernet with wake‑on‑LAN

Frequently asked questions

What processors are compatible with the ASUS A7V motherboard?

The board supports AMD Athlon and Duron processors.

How much memory can the motherboard handle?

It can accommodate up to 1.5 GB of PC133/PC100 SDRAM.

How many IDE connectors are available?

Four IDE connectors are provided, supporting ATA100/66/33 devices.
