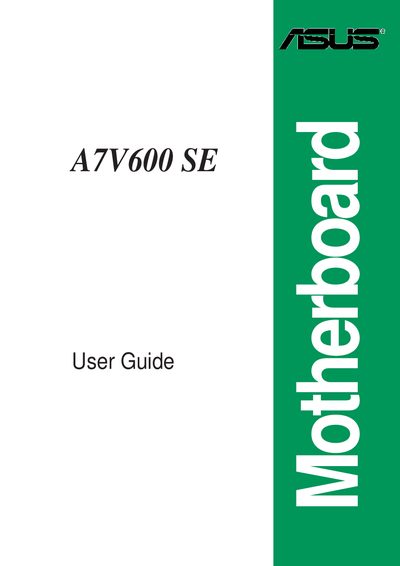

This is a user guide for A7V600 SE motherboard
This guide covers everything needed to install and operate the ASUS A7V600 SE motherboard, including hardware layout, CPU and memory installation, expansion slot configuration, and safety precautions. It also details BIOS features, RAID setup, and the AI Net virtual cable tester.
The document includes a specifications summary, troubleshooting tips, and contact information for ASUS support. Users can find instructions for updating the BIOS with ASUS EZ Flash, configuring RAID arrays, and using the built‑in networking diagnostics.
| CPU socket | Socket A for AMD Athlon XP/Athlon/Duron |
|---|---|
| Northbridge | VIA KT600 |
| Southbridge | VIA VT8237 |
| Memory slots | 3 x 184‑pin DDR DIMM sockets |
| Maximum memory | 3 GB unbuffered non‑ECC DDR SDRAM |
| AGP slot | 1 x AGP 8X |
| Serial ATA ports | 2 x Serial ATA with RAID |
| LAN controller | Marvell® 88E8001 Gigabit |
It supports AMD Athlon XP, Athlon, and Duron processors using Socket A.
Use ASUS EZ Flash or AFLASH from the BIOS menu, or recover with CrashFree BIOS.
The board supports RAID 0, RAID 1, and RAID 0+1 via the VIA RAID BIOS utility.
Disconnect the power cable, unplug all device cables, avoid short circuits, and keep the board away from moisture.
