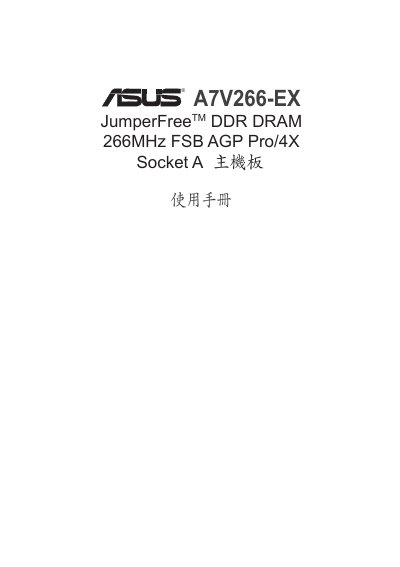

ASUS system board A7V226-EX Manual

A7V266-EX JumperFree™ DDR DRAM 266MHz FSB AGP Pro/4X Socket A is a motherboard of ASUS

Brand: ASUS
Document type: User Manual
Language: English
Pages: 108
File format: PDF
File size: 8 MB
Published: 22 March, 2012
Updated: 30 September, 2023
Model: A7V
MD5 checksum: F3AB26E4A6D2D5C545C478174F83B82C
PDF: ASUS system board A7V226-EX Manual PDF

About this manual

This manual covers the hardware features of the ASUS A7V266-EX motherboard, including supported CPUs, memory types, expansion slots, and integrated peripherals. Detailed BIOS configuration options and jumper‑free settings are described.

Additional sections list supported audio/video codecs, USB interfaces, and software utilities such as CyberLink PowerPlayer. The document also includes troubleshooting tips and reference tables for component installation.

What's inside

Supported Processors
Memory Specifications
Chipset and Bus Architecture
Expansion Slots and Connectors
Audio and Video Features
BIOS Configuration
Software Utilities

Specifications

CPU Support	AMD Athlon™ / Athlon XP™ / Duron™ Socket A
AGP Interface	AGP Pro 4X/2X/1X
IDE Interface	UltraDMA/133, ATA‑133

Frequently asked questions

Which processors can be used with the A7V266-EX motherboard?

The board supports AMD Athlon, Athlon XP, and Duron processors for Socket A.

What AGP speeds are supported?

The motherboard provides AGP Pro 4X, 2X, and 1X operation.
