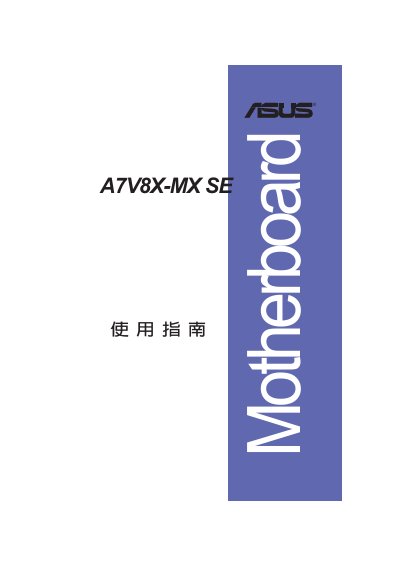

A7V8X-MX SE is a motherboard from ASUS
This manual guides users through safe handling, installation, and configuration of the ASUS A7V8X-MX SE motherboard. It includes safety notices, hardware connection instructions, and power‑up procedures to ensure reliable operation.
The document also details BIOS features, system monitoring tools, and utility programs, as well as a complete list of technical specifications such as CPU socket type, chipset, memory support, and I/O ports.
| CPU Socket | Socket A (AMD) |
|---|---|
| Northbridge Chipset | VIA KH400 |
| Southbridge Chipset | VIA VT8235 CE |
| Front Side Bus Speed | 333/266/200 MHz |
| Memory Type | Non‑ECC DDR SDRAM |
| Maximum Memory Capacity | 2 GB |
| IDE Connectors | IDE connector |
| Audio Codec | AD1980 |
| S/PDIF I/O | S/PDIF input/output |
| USB Ports | Four USB 2.0 ports |
| Form Factor | Micro‑ATX 9.6 × 9.6 in |
The motherboard uses a Socket A for AMD processors such as the Athlon 3200+ and newer.
It supports non‑ECC DDR SDRAM modules, with a maximum total memory capacity of 2 GB.
