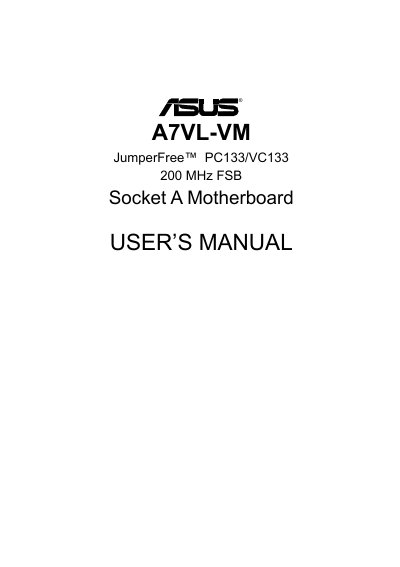

This document is the user manual for ASUS A7VL-VM motherboard, which includes the motherboard's specifications, features, and usage instructions.
This manual guides users through the installation and configuration of the ASUS A7VL-VM motherboard. It includes sections on hardware setup, BIOS configuration, and software installation, as well as regulatory compliance information.
The document also details the board’s features such as JumperFree™ over‑clocking, USB ports, Wake‑On‑LAN support, and supported AMD Athlon/Duron processors, helping users get the most out of their system.
| Supported processors | Socket A‑based AMD Athlon™/Duron™ processors |
|---|---|
| North Bridge chipset | VIA VT8364 (ProSavage KL133) |
| South Bridge chipset | VIA VT82C686B PCI chipset |
| Maximum memory | Up to 1.5 GB PC133/PC100/VC133 SDRAM |
| JumperFree™ mode | Enables BIOS over‑clocking via DIP switches |
| USB ports | Supports up to 4 USB ports (2 rear, 2 midboard) |
It supports Socket A‑based AMD Athlon™ and Duron™ processors.
The board supports up to four USB ports, two on the back panel and two midboard.
JumperFree™ mode allows processor settings and easy over‑clocking of frequency and Vcore voltage using DIP switches instead of jumpers.
