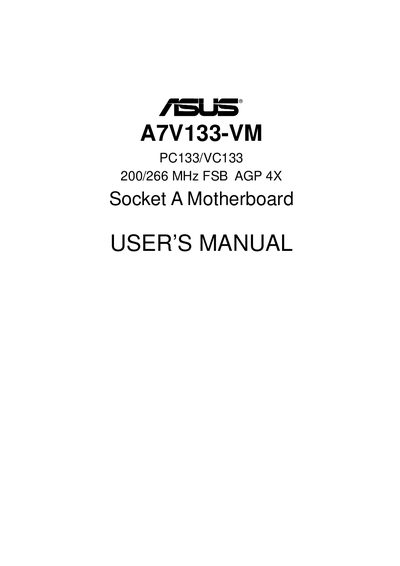

ASUS A7V133-VM Motherboard User Manual

A7V133-VM User's Manual, Introduces the use of the motherboard, including installation, disassembly, and upgrades

Brand: ASUS
Category: Board
Document type: User Manual
Language: English
Pages: 96
File format: PDF
File size: 2.9 MB
Published: 22 March, 2012
Updated: 30 September, 2023
Model: A7V
MD5 checksum: C44239E455D72DA7893D39FFC2EF4D0B
PDF: ASUS A7V133-VM Motherboard User Manual PDF

About this manual

This manual covers everything needed to install and configure the ASUS A7V133-VM motherboard, including a checklist of package contents, detailed hardware layout, and step‑by‑step procedures for CPU, memory, and expansion card installation. It also explains BIOS setup, power management, and the bundled software utilities.

Additional sections describe the motherboard’s features such as the VIA VT8365A north‑bridge, VIA VT82C686B south‑bridge, AGP 4X slot, USB ports, and health‑monitoring capabilities, as well as FCC compliance and troubleshooting information.

What's inside

Introduction
Features
Hardware Setup
BIOS Setup
Software Setup
Software Reference
Appendix

Specifications

Supported processors	Socket A‑based AMD Athlon/Duron
Maximum memory	1 GB PC133/PC100 SDRAM
USB ports	Up to 4 ports (2 rear, 2 midboard)

Frequently asked questions

What processors are supported by the ASUS A7V133-VM motherboard?

It supports Socket A‑based AMD Athlon and Duron processors.

How many USB ports does the motherboard provide?

The board provides up to four USB ports – two on the back panel and two midboard.

What type and amount of memory can be installed?

It can hold up to 1 GB of PC133/PC100 SDRAM using two DIMM sockets.
