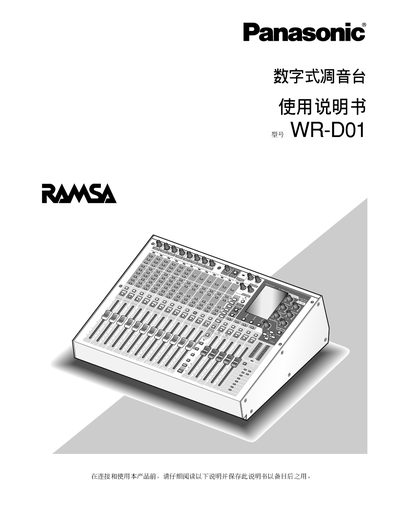

This document is the user manual for a digital fade-out console. It introduces the various parts and functions of the product, as well as precautions before use.
This manual covers important safety precautions, including warnings against opening the unit, keeping it away from water, and using only qualified service personnel. It also details the recommended operating environment such as temperature (0 °C‑40 °C), humidity (up to 85 %), and power requirements (220‑240 V AC, 50 Hz).
The document explains the front‑panel sections—INPUT, OUTPUT FADER, EQ/SEND/REV, MONITOR/OSC—and provides wiring diagrams, RS‑422 and REMOTE interface specifications, as well as basic operation procedures for mixing, routing, and effect processing. This manual is written in Chinese.
