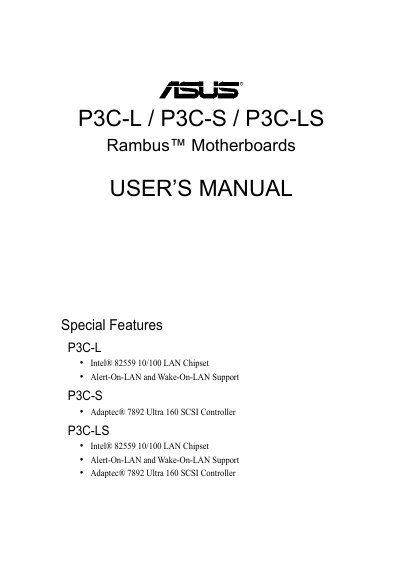

ASUS P3C-L / P3C-S / P3C-LS Motherboard User Manual

This manual introduces the features and characteristics of the P3C-L / P3C-S / P3C-LS motherboards

Brand: ASUS
Category: Other
Document type: User Manual
Language: English
Pages: 114
File format: PDF
File size: 5 MB
Published: 22 March, 2012
Updated: 30 September, 2023
MD5 checksum: F7EEAD0967FD0E538CB53007BF4D1D41
PDF: ASUS P3C-L / P3C-S / P3C-LS Motherboard User Manual PDF

About this manual

This manual covers the ASUS P3C-L, P3C-S, and P3C-LS motherboards. It is organized into sections for introduction, features, hardware setup, BIOS setup, software setup, software reference, and an appendix with optional components.

The document details the board's key components such as the Intel 82559 LAN chipset, Adaptec 7892 SCSI controller, dual RIMM sockets, AGP Pro slot, UltraDMA/66 support, JumperFree™ mode, Wired for Management V2.0, and optional infrared module.

What's inside

INTRODUCTION
FEATURES
HARDWARE SETUP
BIOS SETUP
SOFTWARE SETUP
SOFTWARE REFERENCE
APPENDIX

Specifications

LAN Chipset	Intel® 82559 10/100
SCSI Controller	Adaptec® 7892 Ultra 160
RIMM Sockets	2 sockets, up to 1 GB
AGP Slot	AGP Pro slot (1X/2X/4X)
UltraDMA Support	UltraDMA/66
JumperFree Mode	Allows processor settings and over‑clocking via BIOS

Frequently asked questions

What LAN chipset is used in the P3C-L model?

The P3C‑L model uses the Intel® 82559 10/100 LAN chipset.

Which SCSI controller is included in the P3C-S model?

The P3C‑S model includes an Adaptec® 7892 Ultra 160 SCSI controller.

How many RIMM sockets does the motherboard have?

The board provides two Rambus Inline Memory Module (RIMM) sockets.

What does JumperFree™ mode allow?

JumperFree™ mode lets you adjust processor frequency and voltage through BIOS without physical jumpers.
