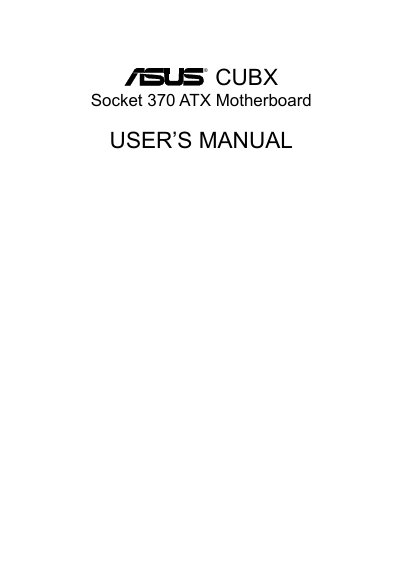

This is a user manual for ASUS CUBX motherboard, which introduces the functions and features of the motherboard and how to use it.
This manual covers the ASUS CUBX ATX motherboard, detailing its features, hardware installation, BIOS configuration, and bundled software utilities. It includes a checklist of items, safety notices, and FCC compliance information.
The document walks the user through hardware setup, CPU and memory installation, expansion card configuration, BIOS menu navigation, and software installation such as the ASUS PC Probe and Update utilities. Appendices provide additional reference material and optional components.
| Form factor | Socket 370 ATX |
|---|---|
| Supported CPUs | Intel Pentium II 100 MHz FSB Coppermine, Intel Celeron 66 MHz FSB Mendocino |
| DIMM slots | 4 |
| PCI slots | Six 32‑bit PCI (rev 2.2) expansion slots |
| Serial ports | Two high‑speed UART compatible serial ports |
| Parallel port | One parallel port with EPP and ECP capabilities |
It uses a Socket 370 ATX form factor.
The board supports Intel Pentium II 100 MHz FSB Coppermine core and Intel Celeron 66 MHz FSB Mendocino PPGA processors.
There are four DIMM sockets that support PC100‑compliant SDRAM up to 1 GB.
It provides six 32‑bit PCI (rev 2.2) expansion slots, with optional ISA support.
