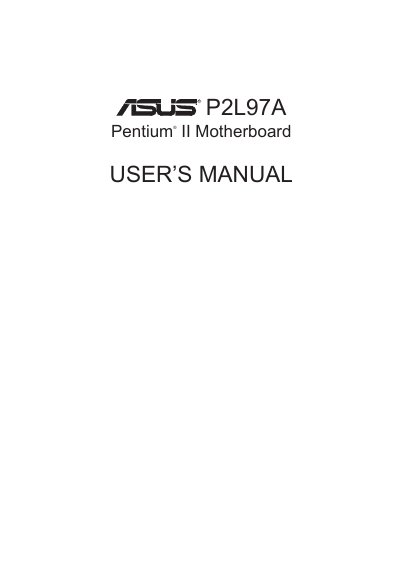

Asus P2L97A user manual, introduces the characteristics of P2L97A motherboard.
This manual covers all aspects of the ASUS P2L97A motherboard, including an introduction, feature overview, detailed installation steps, BIOS configuration, and desktop management utilities. It also includes a section on optional ASUS PCI‑SCSI cards and regulatory compliance information.
The document is organized into clear sections with checklists, diagrams, and jumper settings, helping users set up the CPU, memory, expansion cards, and peripherals while ensuring proper FCC and Canadian compliance.
| Chipset | Intel 440LX with ATI 3D RAGE AGP graphics |
|---|---|
| L2 cache | 256 KB or 512 KB pipelined burst |
| Expansion slots | 2 × 16‑bit ISA, 4 × 32‑bit PCI |
| SCSI card IDs | PCI‑SC200 and PCI‑SC860 fixed SCSI ID 7 |
Up to seven SCSI devices can be attached, while the card itself uses SCSI ID 7.
A shielded cable must be used for the monitor connection, and the equipment must not cause harmful interference.
