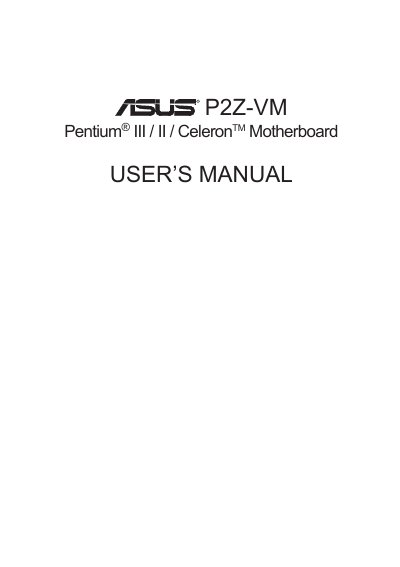

ASUS P2Z-VM User's Manual, introduces the features and characteristics of this motherboard
This manual provides complete instructions for the ASUS P2Z‑VM motherboard, a Pentium III/II/Celeron board with Intel 440ZX AGPset, PC100‑compatible SDRAM support and a range of optional features such as Wake‑On‑LAN and infrared connectivity. It includes safety notices, warranty information and contact details for ASUS technical support.
The document is organized into sections on features, hardware setup (CPU, memory, expansion cards, connectors), BIOS setup, software installation, software reference, and an appendix with glossary and optional add‑on cards. Detailed tables list jumper settings, CPU bus frequency multiples, and power‑management options.
| Supported CPUs | Pentium III (450 MHz and faster), Pentium II (233‑450 MHz), Celeron (266 MHz and faster) |
|---|---|
| Expansion Slots | Three 32‑bit PCI slots and one 16‑bit ISA slot |
The board supports Intel Pentium III (450 MHz and faster), Pentium II (233 MHz to 450 MHz) and Celeron (266 MHz and faster) processors.
Wake‑On‑LAN allows the system to be powered on remotely by sending a wake‑up frame to an Ethernet LAN adapter that supports the feature.
Yes, it features an Intel 82558 Ethernet LAN controller with 10BASE‑T/100BASE‑TX support and Wake‑On‑LAN capability.
