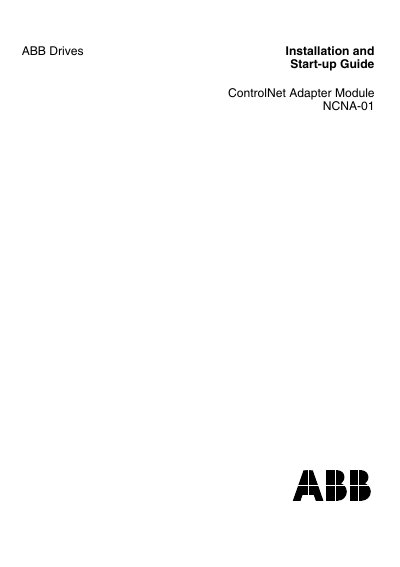

This document is the installation and start-up guide for the ABB Drives ControlNet Adapter module NCNA-01. It provides safety instructions for installing and operating the module. It also reminds users to follow the complete safety instructions of the specific drive they are working on.
This guide provides all the information needed to install and commission the ABB NCNA-01 ControlNet Adapter Module. It begins with safety instructions, then details mechanical mounting options, electrical wiring, earthing, and node address selection. The document also explains how to configure the module, program the drive, and use the ControlNet communication features.
Appendices give technical data such as enclosure dimensions, power consumption, bus length limits, and ambient operating, storage, and transportation conditions. The guide is intended for qualified electricians and engineers responsible for integrating the module with ABB drives in industrial automation systems.
| Enclosure dimensions | 93 × 35 × 76.5 mm (H × W × D) |
|---|---|
| IP rating | IP20 |
| Current consumption | 160 mA at 24 V DC |
| Maximum bus length (RG‑6 coax) | 250 m (48 nodes), 1000 m (2 nodes), 5000 m with repeaters |
| Transfer rate | 5 MBit/s |
| Operating temperature range | 0 °C to +50 °C |
| Storage temperature range | -40 °C to +70 °C |
The NCNA-01 supports up to 250 m for 48 nodes, 1000 m for 2 nodes, or 5000 m when repeaters are used.
It operates from a 24 V DC supply and draws 160 mA.
The enclosure is rated IP20.
The module can operate in temperatures from 0 °C up to +50 °C.
