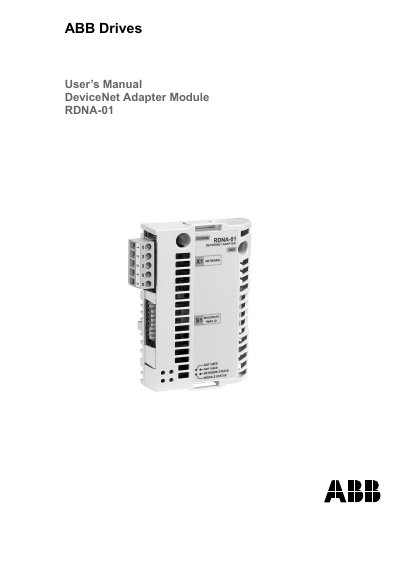

This manual describes the installation and operation of the ABB RDNA-01 DeviceNet Adapter module.
The ABB RDNA-01 DeviceNet Adapter Module manual provides safety instructions, an overview of the DeviceNet protocol, and detailed guidance for installing, wiring, and configuring the module. It is intended for qualified personnel who install, commission, and operate the adapter with ABB drives.
The document includes a quick‑start guide, mechanical and electrical installation steps, drive configuration procedures, communication profile details, diagnostics, and a technical data section with specifications such as enclosure type, IP rating, connector types, current consumption, and supported bus lengths.
| Enclosure | Mounting: Into an option slot inside the drive |
|---|---|
| Degree of protection | IP20 |
| DIP switches | Eight DIP switches for selecting node address and baud rate |
| Connectors | 34‑pin parallel bus connector; 5‑pole screw type connector for bus connection |
| Current consumption | 250 mA max (5 V) from RMIO board; 15 mA max (24 V) from network supply |
| Maximum bus length | 1200 m |
| Transfer rate | 125, 250 or 500 kbit/s |
| Protocol | DeviceNet |
The module has an IP20 degree of protection.
It includes eight DIP switches for selecting node address and baud rate.
The maximum bus length is 1200 m.
Supported transfer rates are 125, 250 or 500 kbit/s.
