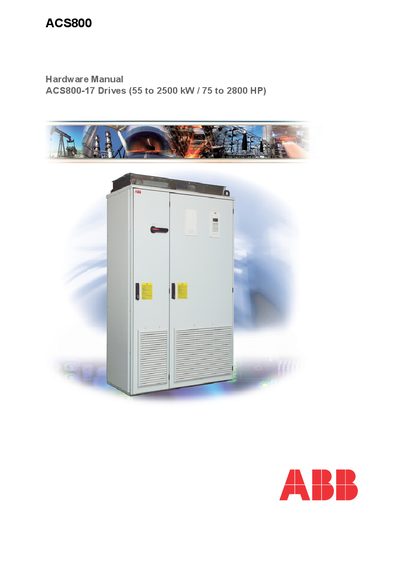

This manual describes the installation, wiring, commissioning and maintenance procedures for the ACS800-17 drives
This manual covers the safety instructions required when installing, operating, and servicing the ACS800‑17 drive series. It details warnings, notes, and procedures to prevent injury, death, or equipment damage, including isolation, grounding, and handling of high‑voltage components.
The document also includes installation guidance, grounding requirements, handling of fibre‑optic cables, and contact information for ABB support locations worldwide.
| Power rating | 55 to 2500 kW (75 to 2800 HP) |
|---|---|
| Drive model | ACS800-17 |
The drive must be isolated from the supply, the input power turned off, and a 5‑minute wait is required before starting work. Verify discharge by measuring voltage between UDC+ and UDC‑, and apply temporary grounding.
The drive, motor, and adjoining equipment must be connected to a protective earth conductor sized according to safety regulations, with a minimum cross‑section of 10 mm² Cu or 16 mm² Al.
The minimum allowed bend radius for fibre optic cables is 35 mm (1.4 in.).
