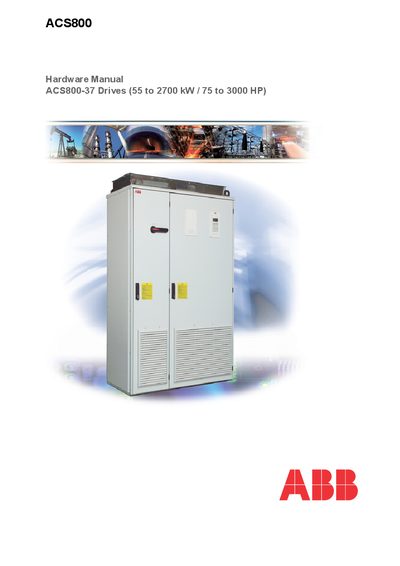

ABB ACS800-37 Drive Hardware Manual

This manual describes the hardware components, installation, connections, and commissioning of the ACS800-37 drives

Brand: ABB
Category: Motor
Document type: Service Manual
Language: English
Pages: 252
File format: PDF
File size: 10.6 MB
Published: 22 March, 2012
Updated: 30 September, 2023
Model: ACS800
MD5 checksum: 95D29B9239C6204E7D9A389FE700CF38
PDF: ABB ACS800-37 Drive Hardware Manual PDF

About this manual

This hardware manual covers the ACS800‑37 variable‑frequency drive, rated from 55 kW to 2700 kW (75 HP to 3000 HP). It includes detailed safety instructions, wiring guidelines, and procedures for installing, commissioning, and servicing the drive.

The document also describes grounding requirements, handling of fibre‑optic cables, and contact information for ABB support centers worldwide.

What's inside

Safety Instructions
Installation and Maintenance
Grounding
Fibre Optic Cables
Contact Information

Specifications

Power rating	55 to 2700 kW (75 to 3000 HP)
Brake control voltage	over 500 V DC

Frequently asked questions

Who is allowed to install and maintain the ACS800 drive?

Only qualified electricians are allowed to install and maintain the drive.

What must be done before working on the drive after power is switched off?

After switching off the input power, wait at least 5 minutes for the capacitors to discharge and verify voltage between UDC+ and UDC‑ before starting work.
