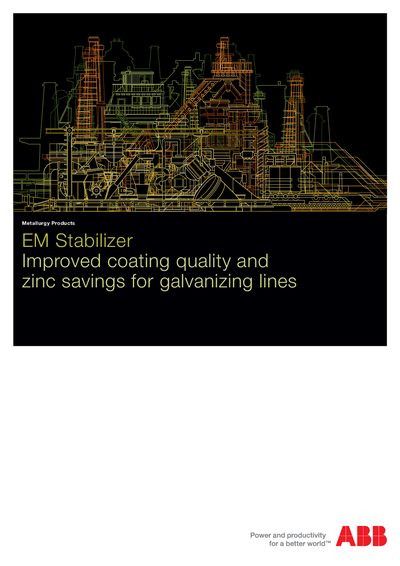

ABB EM Stabilizer improves coating quality and zinc savings for galvanizing lines. ABB EM Stabilizer uses a non-contact electromagnetic strip stabilizer to reduce vibrations and strip shape problems such as cross bow in galvanizing lines. ABB EM Stabilizer's state-of-the-art control system has robustness and is optimal for all strip dimensions, enabling improved quality of the coating layer and reduced overcoating.
The EM Stabilizer is a non‑contact electromagnetic strip stabilizer designed for galvanizing lines. It reduces strip vibrations and shape problems, improving coating quality and lowering zinc consumption. The system includes magnet modules, power and control cubicles, a cooling water station, and an ABB Process Monitor for real‑time visualization.
Installation can be performed on new or existing lines, either mounted on the air‑knife structure or on an overhead rig. Technical specifications such as strip speed, power consumption, and environmental limits are provided, along with plant trial results showing significant vibration reduction and coating uniformity.
| Cubicle dimensions (W x D x H) | 600 x 600 x 2,100 mm |
|---|---|
| Strip speed | 0‑200 m/min |
| Weight | 100 kg |
| Air gap between magnets | 40‑60 mm |
| Flow rate (cooling water) | 6 V/min |
| Air for cooling of sensors | 500 ml/min |
| Total average power | 5 kW |
| Primary voltage | 400 V |
| Maximum strip width | 2,100 mm |
It improves coating quality, reduces zinc overcoating by 2‑4%, increases line speed, and offers a robust control system for all strip dimensions.
It can be mounted on the air‑knife structure, an overhead frame, or a free‑standing rig, and is suitable for new installations or retrofits.
The system has a total average power consumption of 5 kW.
The air gap is specified as 40‑60 mm.
