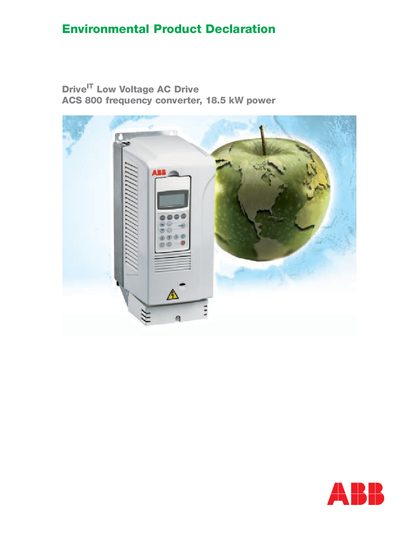

This is an environmental declaration for ABB DriveIT Low Voltage AC Drive ACS 800 frequency converter, 18.5 kW power 3AFE 64669745
This document provides the Environmental Product Declaration (EPD) for the ABB ACS 800‑01‑0025‑5 low‑voltage AC drive. It details the material makeup, energy consumption, and environmental impacts of the 18.5 kW, 500 V product with protection class IP21.
The life‑cycle assessment follows ISO 14001 standards, using a functional unit of 1 kW rated output and an assumed 15‑year lifetime (5,000 h/yr). It covers raw material extraction, manufacturing, use, and end‑of‑life phases, presenting data on global warming potential, acidification, eutrophication, and other impact categories.
| Rated power | 18.5 kW |
|---|---|
| Rated voltage | 500 V |
| Protection class | IP21 |
| Series power range | 1.1 kW to 3,000 kW |
| Steel per product | 2.07 kg |
| Copper per product | 0.88 kg |
| Aluminium per product | 3.88 kg |
The functional unit is 1 kW of rated output power.
A lifetime of 15 years with 5,000 hours of operation per year is assumed.
