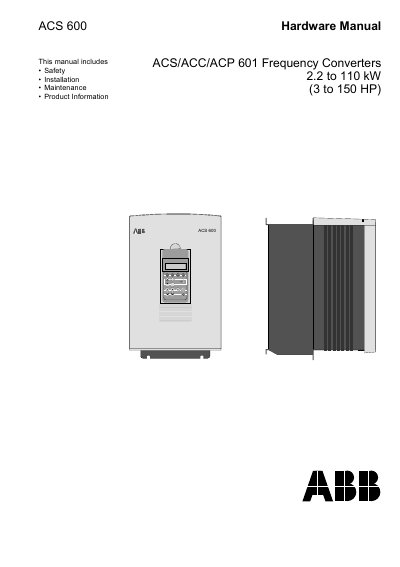

This document is the hardware manual for ACS/ACC/ACP 601 frequency converters, which includes safety, installation, maintenance, and product information. The frequency converters are suitable for power ranges from 2.2 to 110 kW (3 to 150 HP).
The manual covers the complete lifecycle of the ABB ACS/ACC/ACP 600 series frequency converters, including safety instructions, mechanical installation, wiring, and maintenance. It is intended for qualified electricians and service technicians who need detailed information on safe handling, commissioning, and fault tracing.
Key sections include Safety Instructions, Mechanical Installation, Technical Data tables, Dimensional Drawings, Cable Selection, and specific guidance on motor connections, earth‑fault protection, and relay contact protection. The document also provides parameter settings for various application programs and optional equipment.
| Power range | 2.2 to 110 kW (3 to 150 HP) |
|---|---|
| Three‑phase supply voltage | 380 V, 400 V or 415 V |
| Duty Cycle (normal use) | 1/5 min |
| Rated apparent power (PN) | 7.6 kW (model ACx 601‑0005‑3) |
All electrical work must be done by qualified electricians. After switching off the mains, wait at least five minutes for the intermediate‑circuit capacitors to discharge, then verify that the voltage between each input terminal and earth is zero before starting work.
Install the unit upright with the cooling section facing the wall, mark and drill four mounting holes, fix the screws, and lift the unit by its chassis using the lifting lugs before securing it to the wall.
