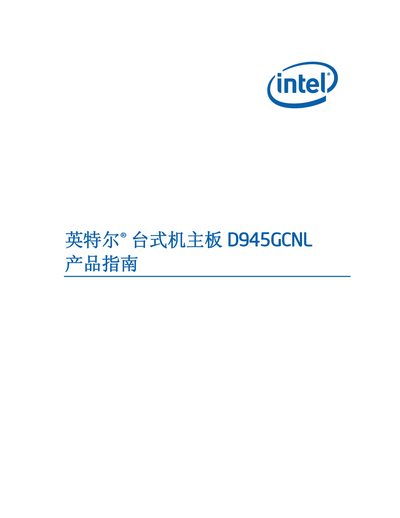

This guide introduces the features and characteristics of the desktop board D945GCNL and describes how to install and use the board.
This product guide is intended for qualified technical personnel who need detailed information about the Intel D945GCNL desktop motherboard. It covers board layout, component installation, BIOS update procedures, error messages, and regulatory compliance.
The document includes sections on motherboard features, installation and replacement of components, BIOS update utilities, error and indicator signal explanations, and certification details such as FCC, UL, CE and other regional approvals. Packaging contents and connector pin‑outs are also listed. This manual is written in Chinese.
| USB 2.0 support | Supported |
|---|---|
| LAN subsystem | Supported |
| PCI Express X16 slot | Supported |
| Memory type | DDR2 DIMM |
| Audio subsystem | High‑fidelity audio |
It complies with FCC Part 15 B‑class digital device requirements for emissions and immunity.
The Intel Express BIOS Update utility is used to update the BIOS.
