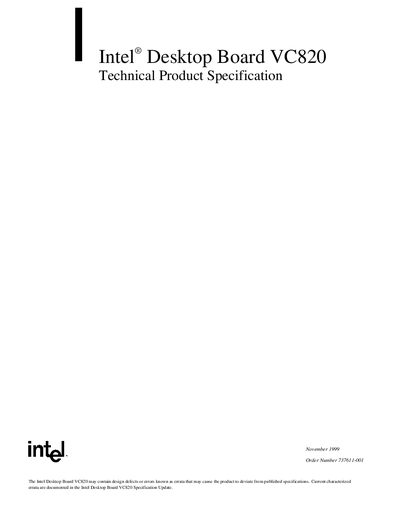

Intel VC820 Desktop Board Technical Product Specification

About this manual

This Technical Product Specification (TPS) describes the Intel VC820 desktop board, covering its layout, components, connectors, power and environmental requirements, and BIOS features. It is intended for vendors, system integrators, engineers and technicians who need in‑depth technical data.

The document includes a hardware description, block diagrams, BIOS setup menus, error messages, beep codes, diagnostic LED codes, and reference tables for power consumption, memory configurations, and supported peripherals.

What's inside

• Product Description
• Hardware Description
• BIOS Features
• BIOS Setup Program
• Error Messages and Beep Codes
• Technical Reference
• Power Management Features
• Connector Pinouts
• Diagnostic LED Codes
• Environmental Specifications

Specifications

Frequently asked questions

What does the BIOS do after POST completes normally?

If POST completes normally, the BIOS issues one short beep before passing control to the operating system.

Where can errata for the VC820 board be obtained?

Current characterized errata are documented in the Intel Desktop Board VC820 Specification Update.
