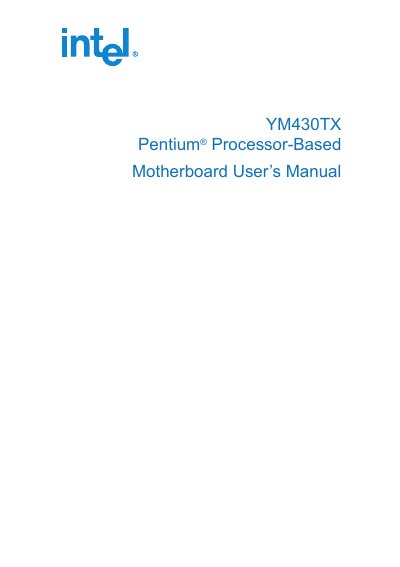

This document is the user manual of Intel YM430TX motherboard, which introduces the features and characteristics, usage methods, etc. of this motherboard.
This manual guides users through setting up the Intel YM430TX motherboard, covering hardware installation, jumper configuration, memory and processor installation, and expansion card mounting. It also includes BIOS setup instructions, power‑management options, and support software information.
Key features described include support for 90‑200 MHz Pentium processors, dual power‑supply connectors, multiple ISA and PCI slots, and extensive memory options. The document also details password protection, IDE auto‑detection, and FCC compliance requirements.
| Supported CPU | 90‑200 MHz Pentium and 166‑233 MHz Pentium with MMX |
|---|---|
| DIMM Memory | Up to 256 MB, 168‑pin, 3.3 V SDRAM/EDO |
| SIMM Memory | Up to 256 MB, 72‑pin FPM or EDO |
| Expansion Slots | 2 × 16‑bit ISA, 3 × 32‑bit PCI, 1 × shared PCI/ISA |
| Power Supply | Dual AT/ATX connectors with soft‑on/off |
| Level‑2 Cache | 512 KB SRAM |
