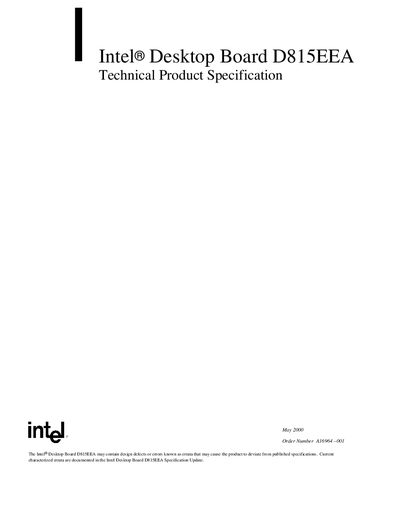

Intel D815EEA Desktop Board Technical Product Specification

About this manual

The Intel D815EEA Technical Product Specification provides detailed information on the board’s layout, components, connectors, power requirements, and BIOS functionality. It is intended for vendors, system integrators, and engineers who need in‑depth technical data.

The document includes a full hardware description, block diagrams, BIOS setup menus, error‑code tables, and extensive reference tables for processors, memory, graphics, audio, LAN, and power management. It also lists regulatory compliance and environmental specifications.

What's inside

• Product Description
• Board Layout and Block Diagram
• Processor and Memory Specifications
• Chipset and I/O Controller Details
• Graphics, Audio, and LAN Subsystems
• BIOS Features and Setup Program
• Error Messages, Beep Codes, and Diagnostic LEDs
• Power Management and Environmental Specs
