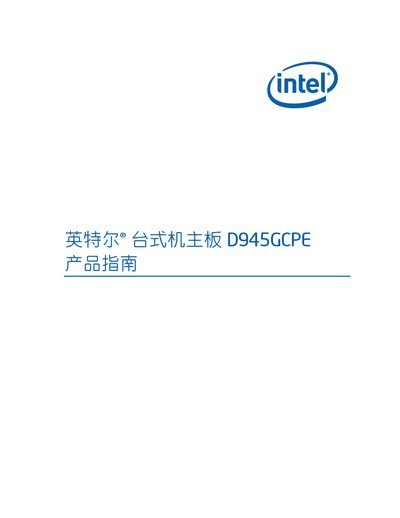

Intel D945GCPE Desktop Motherboard Product Guide

The document is the product guide for Intel® Desktop Board D945GCPE, which describes the features and characteristics of the product.

Brand: Intel
Category: Motherboard
Document type: User Manual
Language: Chinese
Pages: 66
File format: PDF
File size: 4.2 MB
Published: 22 March, 2012
Updated: 29 September, 2023
Model: D945GCPE
MD5 checksum: 64D415ADA453C2B4BD5ABEA127823378
PDF: Intel D945GCPE Desktop Motherboard Product Guide PDF

About this manual

This product guide details the D945GCPE motherboard’s functions, supported components, and installation procedures for qualified technicians. It also covers BIOS update methods, error message explanations, and regulatory compliance.

The document includes safety notices, FCC and Canadian EMC statements, and a list of certification marks required for market approval. It is intended for design‑engineer use rather than general consumers. This manual is written in Chinese.

What's inside

Desktop Motherboard Functions
Installation and Replacement of Components
BIOS Update
Error Messages
Compliance and Standards
Product Certification
Component List

Specifications

IDE interface	ATA‑66/100
USB support	USB 2.0
LAN connector	RJ‑45
Memory type	DDR2 DIMM
PCI configuration	Auto‑configuration

Frequently asked questions

What FCC compliance does the D945GCPE motherboard have?

It complies with FCC Part 15 Class B requirements for digital devices.
