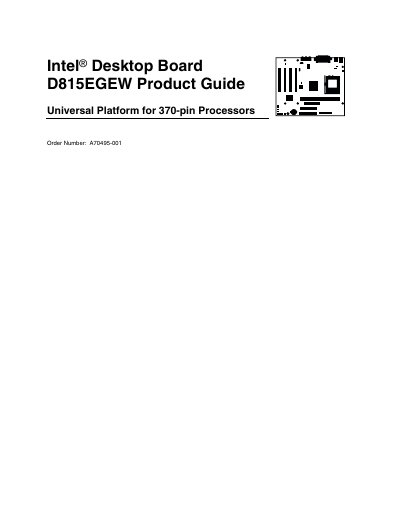

This document is the product guide for Intel® Desktop Board D815EGEW, a universal platform for 370-pin processors. The document provides information about the features and characteristics of the product.
This guide covers the features of the Intel D815EGEW desktop board, including supported processors, memory configurations, chipsets, I/O ports, and power‑management options. Detailed instructions are provided for installing components, updating the BIOS, and using the setup program.
Regulatory compliance, safety precautions, and troubleshooting information are also included to help ensure proper installation and reliable operation of the board in personal‑computer systems.
| Form Factor | microATX (9.6" x 7.65") |
|---|---|
| Chipsets | Intel 82815EG GMCH and Intel 82801BA ICH2 |
| Memory Capacity | 2 DIMM sockets, 64 MB – 512 MB, PC100/PC133 SDRAM |
| Expansion Slots | Four PCI add‑in card connectors |
It has two 168‑pin DIMM sockets that accept 100 MHz PC100 SDRAM or 133 MHz PC133 SDRAM, with a minimum of 64 MB and a maximum of 512 MB.
The board provides four PCI add‑in card connectors.
