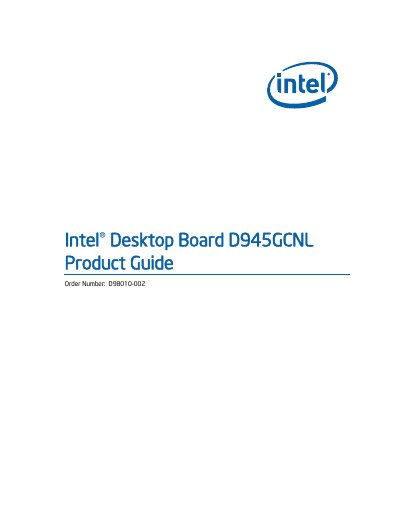

This document is the product guide for Intel Desktop Board D945GCNL. It provides information about the release history, FCC declaration of conformity, and features and characteristics of the product.
The Intel D945GCNL product guide provides detailed information on board layout, component installation, BIOS updates, and regulatory requirements. It is intended for technically qualified personnel who install or service the motherboard in personal computers.
The guide includes feature summaries, step‑by‑step installation procedures, BIOS configuration, error‑code reference, and compliance statements for FCC, CE, and other international standards.
| Form Factor | microATX (243.84 mm × 243.84 mm) |
|---|---|
| Processor Support | Intel processor in LGA775 package |
| Chipset | Intel 945GC Express (GMCH) + ICH7 |
| USB Ports | Up to eight USB 2.0 ports (four rear, four via headers) |
The board provides up to eight USB 2.0 ports, with four on the rear panel and four available through internal headers.
